Dome Variations/Configurations
These design concepts have been approved as feasible and reasonable for our use.
Dome Profiles:
|
|
|
|
Oblate Ellipsoid |
Oblate Ellipsoid with Stem Wall |
Tall Prolate Ellipsoid |
 |
 |
 |
Tall Prolate Ellipsoid with Stem Wall |
Half Sphere with Stem Wall |
Half Sphere |
Low Profile Sphere |
Torus |
Combinations
 |
|
Double Dome |

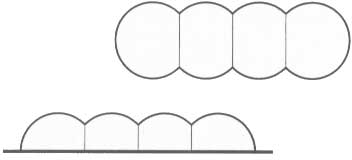

Caterpillar |
|
|
|

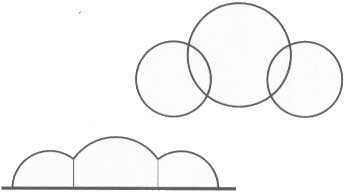

Triple Dome |
Openings
|
|
|
|
Continuous horizontal reinforcing beam. 300’ diameter limit. |
Design for column shear and bending. |
Continuous compression ring at bottom. |
300 ’ diameter limit |
200’ diameter limit |
300’ diameter limit |
Must have connecting ribs, 200’ diameter limit |
Bandshell (1/4 sphere)150’ -- 200’ diameter upper limit. |
|
|
|
|
|
Eccentric opening shapes. |
||
|
|
|
|
It is better to continue shell at base-- at the tension zone of shell. |
||
